Uwe's "Spy Shot" Page

PES 1.8 Supercharger Conversion,
on Air & Water's Dyno
for SoftwareTuning by GIAC!

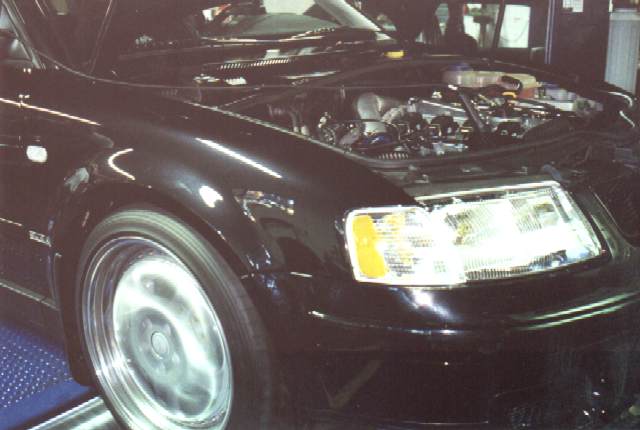

On the Dyno!

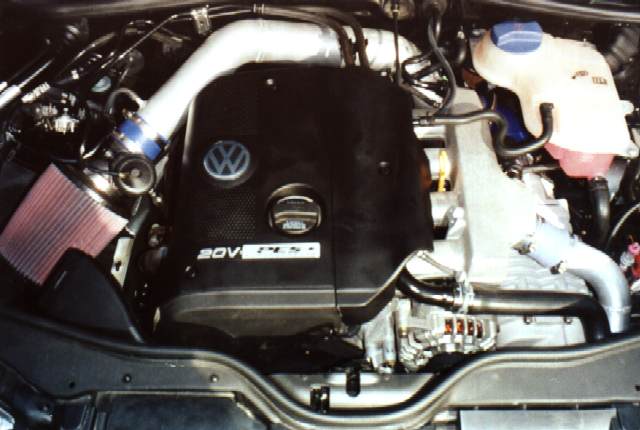

Engine Bay.  This is a prototype setup.  Production kits will have hard-anodized plumbing.

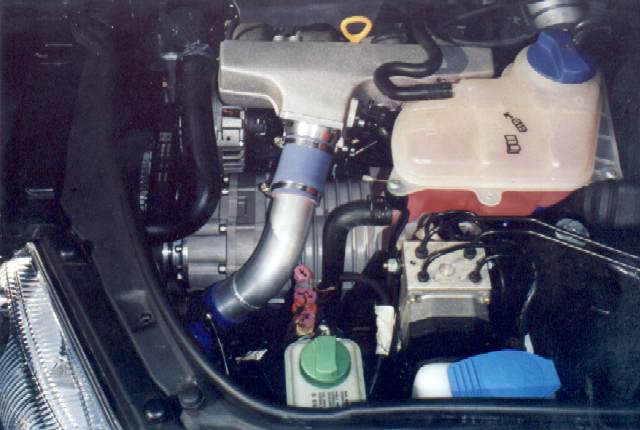

Close-Up of the intake side, showing Eaton M62.

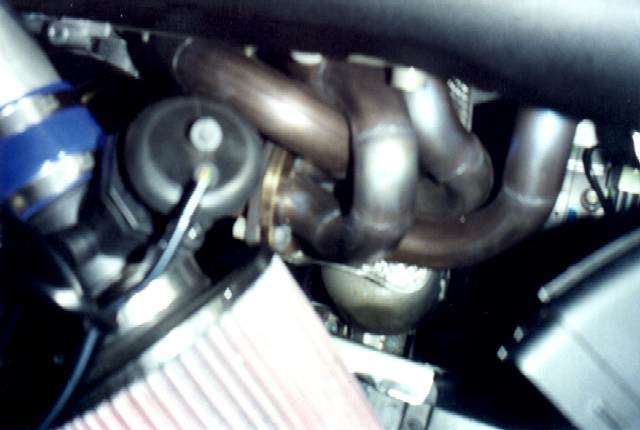

Close-Up of the exhaust side.  Bye-Bye turbo manifold, hello header!   Sorry, this one turned out blurry!
